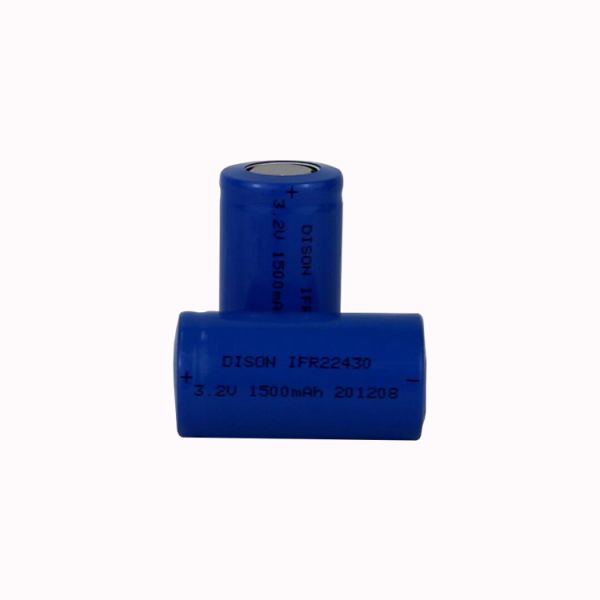

LiFePo4 Lithium Battery 22430 Cell 1500mAh for Wide Temperature Range Emergency Lighting

Name: LiFePo4 Lithium Battery 22430 Cell 1500mAh for Wide Temperature Range Emergency Lighting
Brand: DISON
Price: 0.97 USD

Wholesale LiFePo4 Lithium Battery 22430 Cell 1500mAh for Wide Temperature Range Emergency Lighting from china suppliers

Brand Name : DISON

Model Number : Cylindrical 22430

Place of Origin : Shandong, China

Certification : CE, IEC,CB

Packaging Details : Carton case or packaged as per customer requirements

Supply Ability : 5000000 Piece/Pieces per Month

MOQ : 1000 pieces

Price : $0.97/pieces >=1000 pieces

Payment Terms : T/T

Battery Size : LiFePo4 22430

Weight : 45g

The charging ratio : 0.1C

The discharge rate : 0.2C

Anode Material : LFP

Application : Flashlights,torch,Emergency lighting, home appliances, consumer electronics, electric power system, Flashlights,torch,Emergency lighting

Battery type : Lifepo4 Battery

Product name : 3.2v 1500mAh Lithium ion LiFePO4 Battery Cell 22430

Capacity : 1500mah

Nominal Voltage : 3.2 Volt

Cycle life : 2000 Cycles

Dimension : 22.0*43.0mm

working temperature range : -40℃-+70℃

Type : 22430 cell

Warranty : 3years

Chargeable : Yes

Port : Qingdao

Contact Now

Product Overview

3.2v 1500mAh Lithium-ion LiFePO4 Battery Cell 22430 for emergency lighting, torch

*Using LiFePo4 as cathode material, cell voltage is 3.2V, platform capacity can reach more than 90%;
*Battery has long cycle life, 1 ItA cycle life＞2000 times, and the remaining capacity＞80% of the rated capacity;
*The P-O key in lithium ion phosphate crystal is stable, the decomposition temperature is up to 600 ℃, do not explode when crushing or needling, the safety performance is good;
*High temperature charging and discharging performance is good, the discharge capacity＞98% of the rated capacity under + 70℃.
*Low-temperature discharge performance is good, standard type batteries: single cell discharge capacity > 40% of rated capacity at -30℃; low-temperature batteries: single cell discharge capacity > 50% of rated capacity at - 40℃; battery packs discharge efficiency is more than 70%-75%. With more cells of the battery pack, the discharge efficiency will continue to increase.

LiFePo4 Lithium Battery 22430 Cell 1500mAh for Wide Temperature Range Emergency Lighting

Application

LiFePo4 lithium ion battery has good safety performance, green environmental protection, does not contain cadmium, lead, mercury and other metal pollutants. Products are widely used in Fire emergency lights, Solar street lighting, National power grid, Telecommunications, Power storage, 5G base station, Electric tools, Electric bicycles, UAVs, Robot, Surveillance cameras, Flashlights, Torch etc.

Product Specification

Type	Typical capacity mAh	Min capacity mAh	Max Weight (g)	Internal Resistance (mΩ)	Nominal Voitage (V)	Diameter (mm)	Height (mm)	Max Discharging Rate
IFR 14500	600	500	20	＜50	3.2	14±0.2	50±0.5	2C
IFR 18500	1200	1000	32	＜50	3.2	18±0.2	50±0.5	2C
IFR 18650	1600	1300	42	＜50	3.2	18±0.2	65±0.5	2C
IFR 21700	3000	2800	52	＜50	3.2	21±0.2	70±0.5	2C
IFR 22430	1600	1400	45	＜50	3.2	22±0.2	43±0.5	2C
IFR 22650	2200	2000	62	＜50	3.2	22±0.2	65±0.5	2C
IFR 26650	3600	3000	85	＜50	3.2	26±0.2	65.5±0.5	2C

Certifications

Why Choose Us

Dison guarantee high quality products.

28 years of R&D and production experience.

Among the top 10 battery manufacturers in China

Fully automatic production line.

OEM & ODM service.

Prompt on-time delivery.

Service with heart .

Company Profile

DISON group founded in 1993, with area of 102000 m2, building area of 66000 m2, total asset of1050 million RMB and 770 employees. DISON has more than 10 fully automated advanced production lines of lithium-ion batteries and Ni-MH batteries, with annual output of more than 150 million cells and 300,000 battery packs. DISON is a high-tech
enterprise integrating science, industry and trade. DISON is one of the top 10 battery manufacturers in China and is standing member of CIAPS (China Industrial Association of Power Sources).

DISON History (1993 – 2021)
1993: Company establishment
2010: Take part in GB17945-2010 < Fire emergency lighting and evacuation indicator system > changing job
2012: Passed ISO9001-2008 and GB/T19001 Quality system change version certification.]
